QBC-X1 Charger

Type QBC-X1

Charging, configuration and test unit for all Scanmar sensors except the TrawlEye.

  • Configuration of power level and transmission frequency (FID)
  • Choice of rapid or normal refresh rate (telegrams)
Ask sales about QBC-X1 Charger

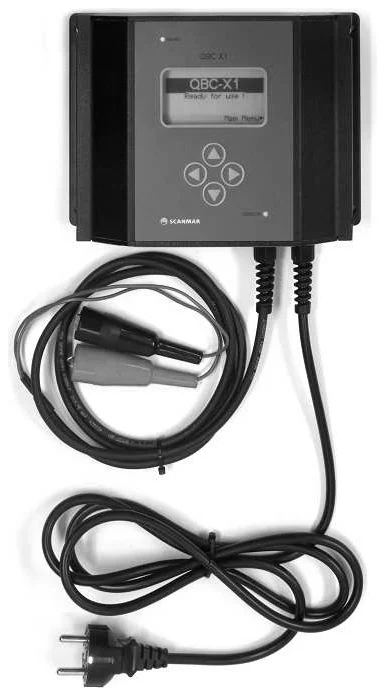

Scanmar QBC-X1 charger and configuration unit with cables

Charging technology

New charging and battery technology delivers rapid charging and the option to activate additional sensor functions.

Compatibility

QBC-X1 is a configuration and test unit compatible with all Scanmar sensors except the TrawlEye, and has several useful features.

Technical specifications

Mains

Voltage
90-264 VAC
Frequency
47-63 Hz
Current
2 A max
Power consumption
70 W max

Charging voltage and current

HC4/MP4 sensor
36V at 0.5A
ScanSensor (SS4)
16V at 5A

Sensors supported

All chargeable Scanmar sensors (except TrawlEye)

Display

Type
Monochrome
Resolution
128x64
Size
3”

Keypad

4 keys

Environmental

Tolerates exposure to water spray

Operating temperature
-10 to 40 ºC
Storage temperature
-20 to 55 ºC

Compass safe distance

To magnetic compass
20 cm

Weight

Approx. 2 kg

Main dimensions

Length
142 mm
Width
203 mm
Height
64 mm
Photo of QBC-X1 Charger
